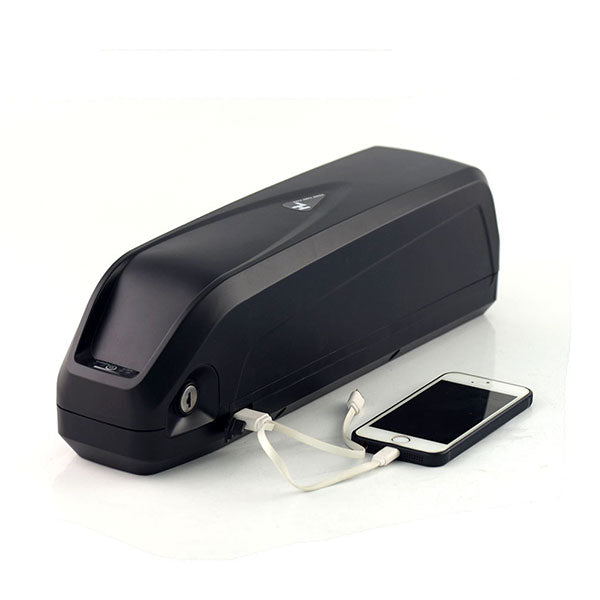

Battery Pack For Electric Bike
Feature
· Direct from the manufacturer.
· Aluminum waterproof case.
· Small in size & light in weight.
· With short-circuit production function, safe and reliable.
· LED power Indicator with Independent power switch.
Battery Pack For Electric Bike
Sale price$9.99
Regular price (/)
Specifications
| ITEMS | 4832 | 6032 | 6058 | 7232 | 7250 | 7253 | 7258 |
|---|---|---|---|---|---|---|---|
| Cell Type | NCM | NCM | NCM | NCM | NCM | NCM | NCM |
| Capacity（kWh） | 1.606 | 2.1 | 3.856 | 2.47 | 3.858 | 4.118 | 4.537 |
| System / Nominal Voltage | 48.23 | 63.07 | 63.75 | 74.2 | 74.2 | 74.2 | 75 |
| EOD Voltage (V) | 39~55.25 | 51~72.25 | 51~73.1 | 60~85 | 60~85 | 60~85 | 60~86 |
| Available Capacity | 33.3 | 33.3 | 60.5 | 33.3 | 52 | 55.5 | 60.5 |
| Charge Operating Temperature（℃） | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 |
| Discharge Operating Temperature（℃） | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 |
| Connection | 1P13S | 1P17S | 1P17S | 1P20S | 1P20S | 1P20S | 1P20S |
| Weight（kg） | ~7 | ~9.5 | ~15.6 | ~11.2 | ~16.6 | ~17.6 | ~18 |
| Energy Density（Wh/kg） | 230 | 220 | 247 | 220 | 232 | 233 | 252 |
| Cycle | / | / | / | / | / | / | / |

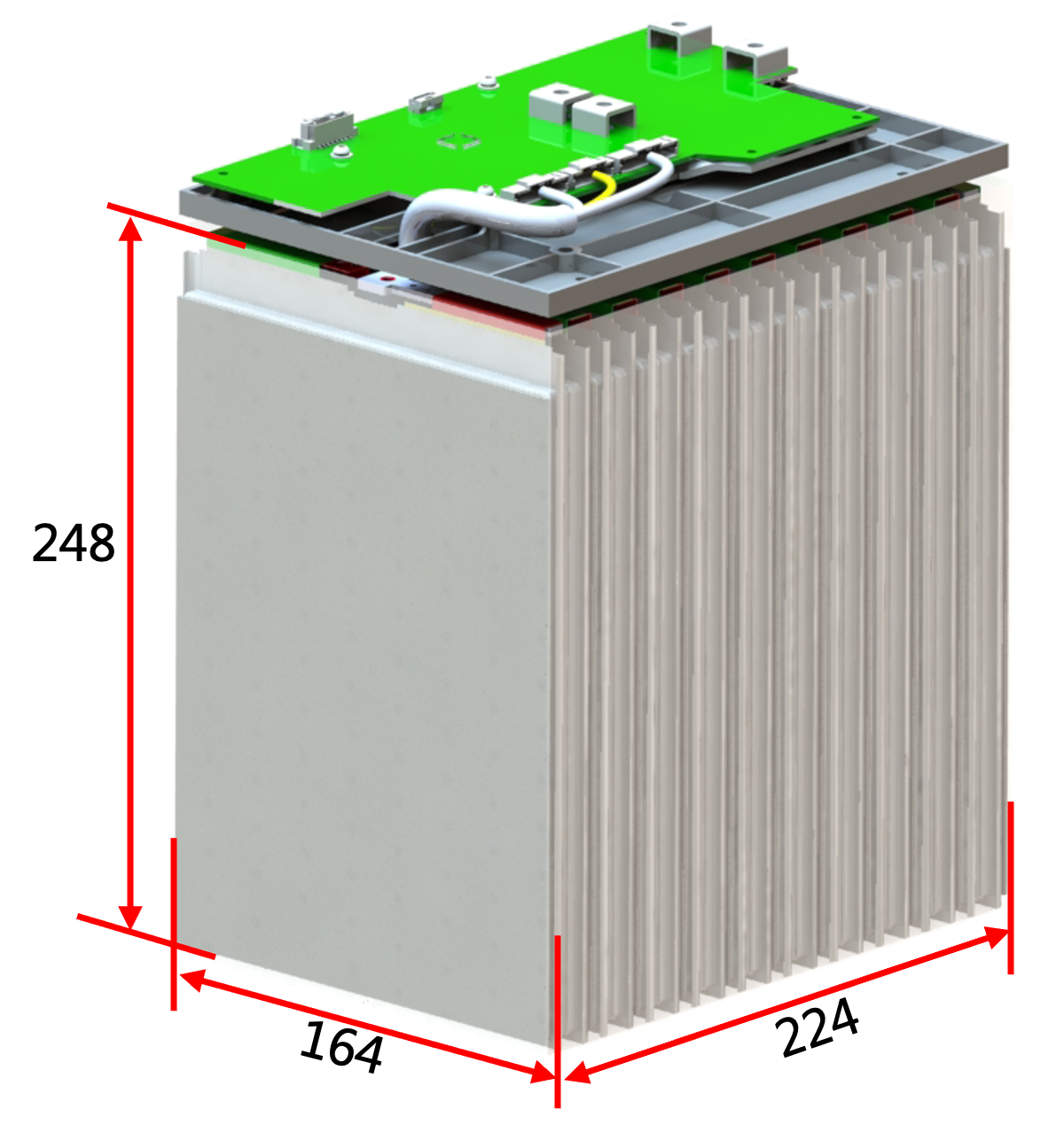

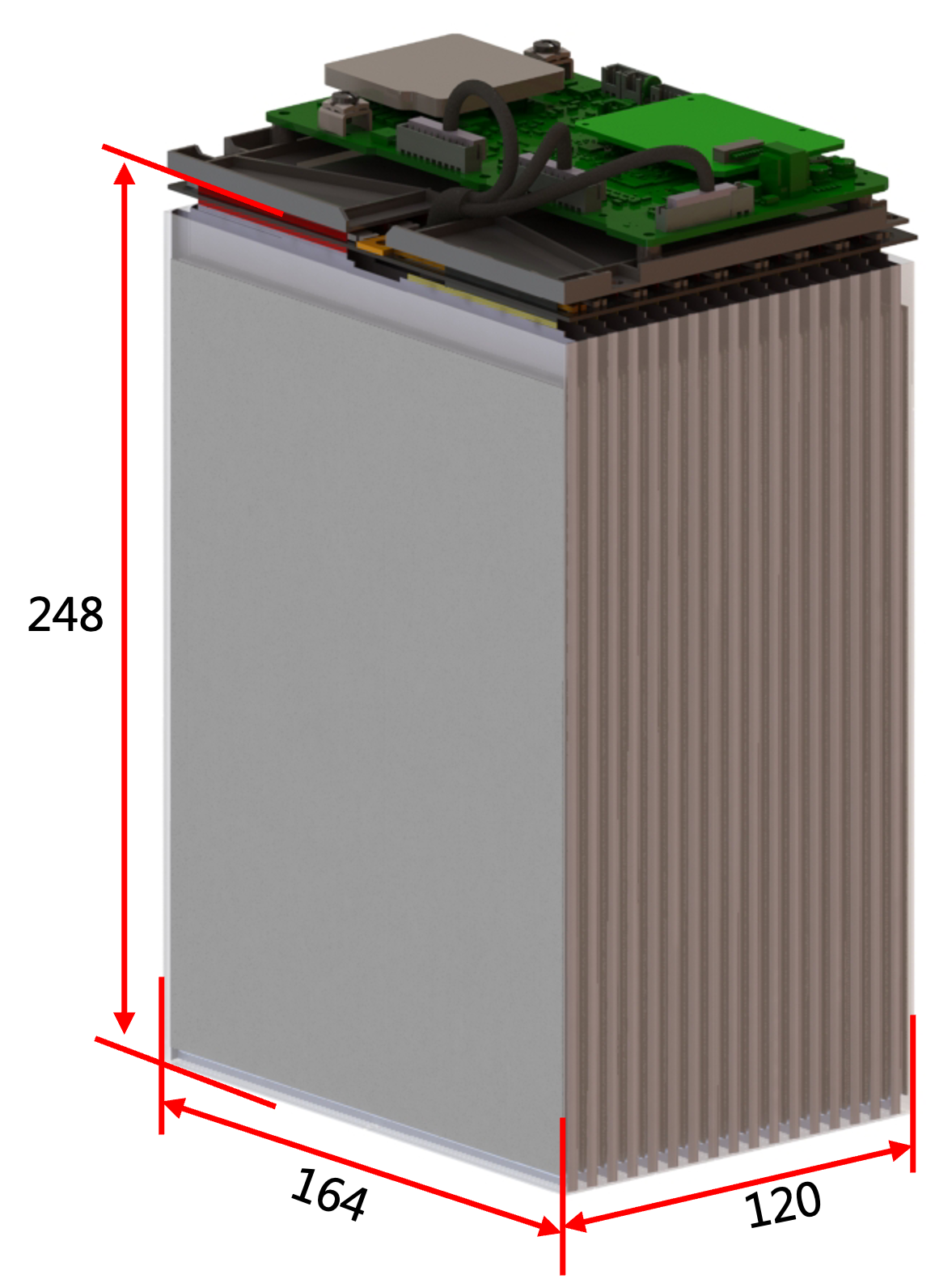

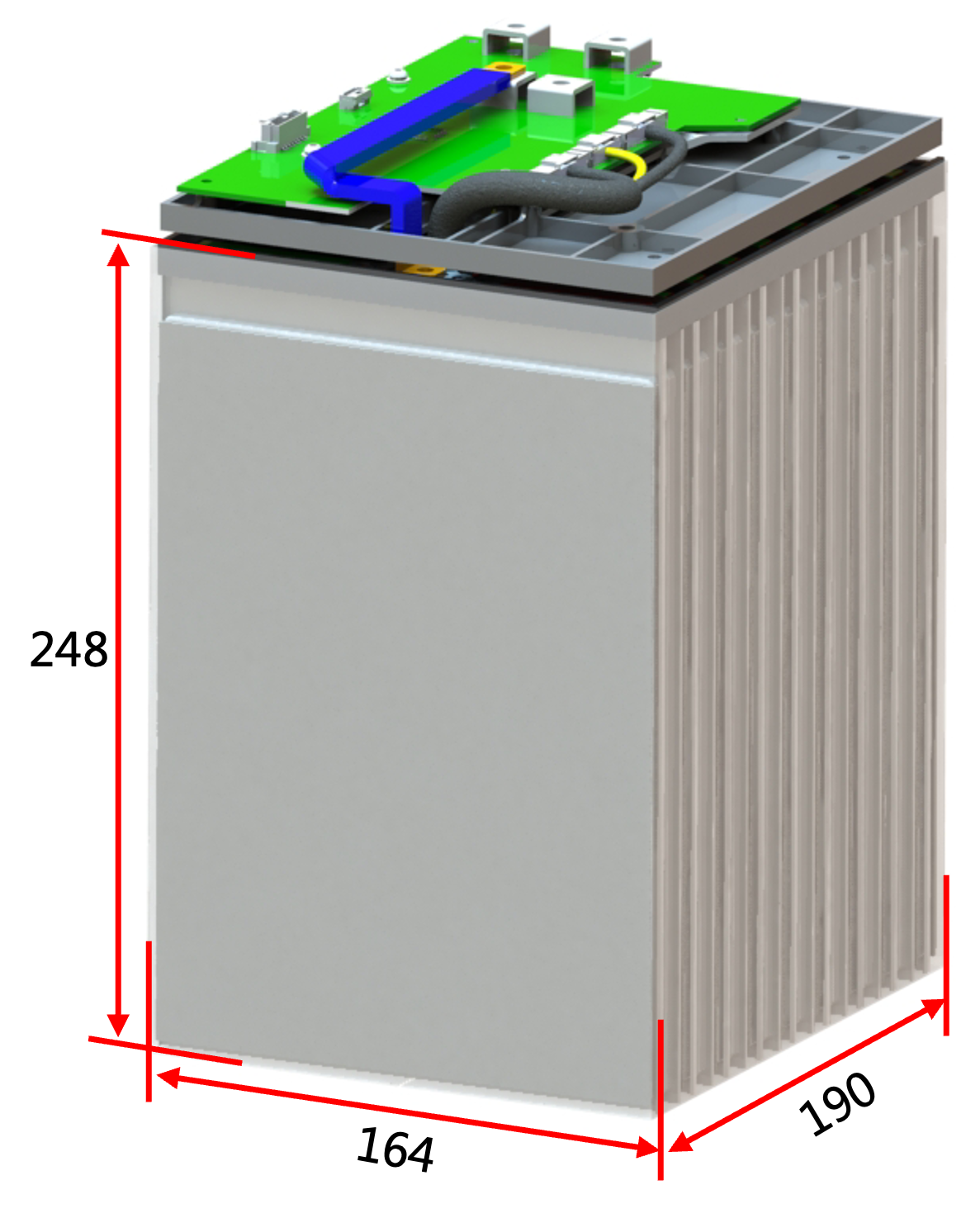

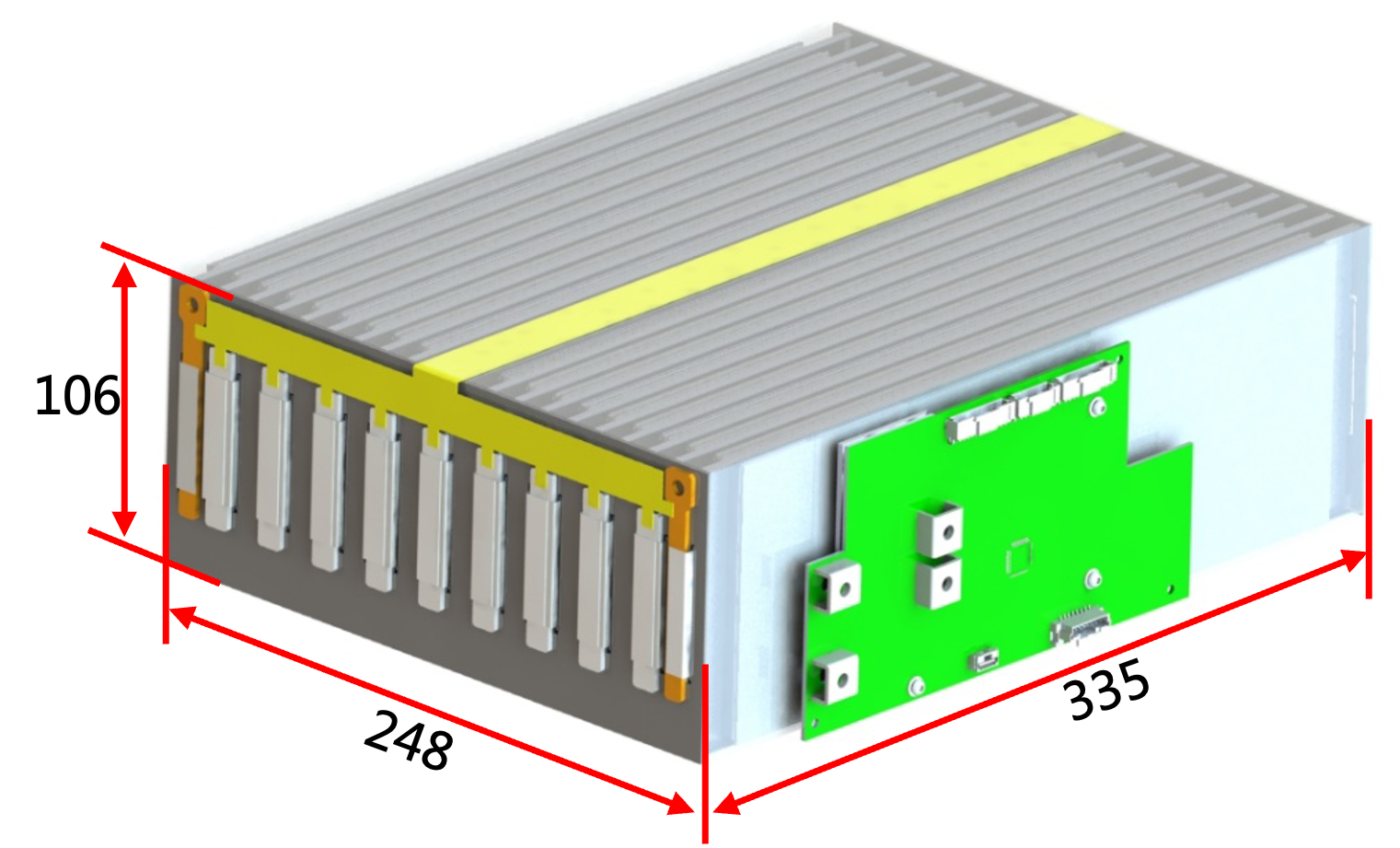

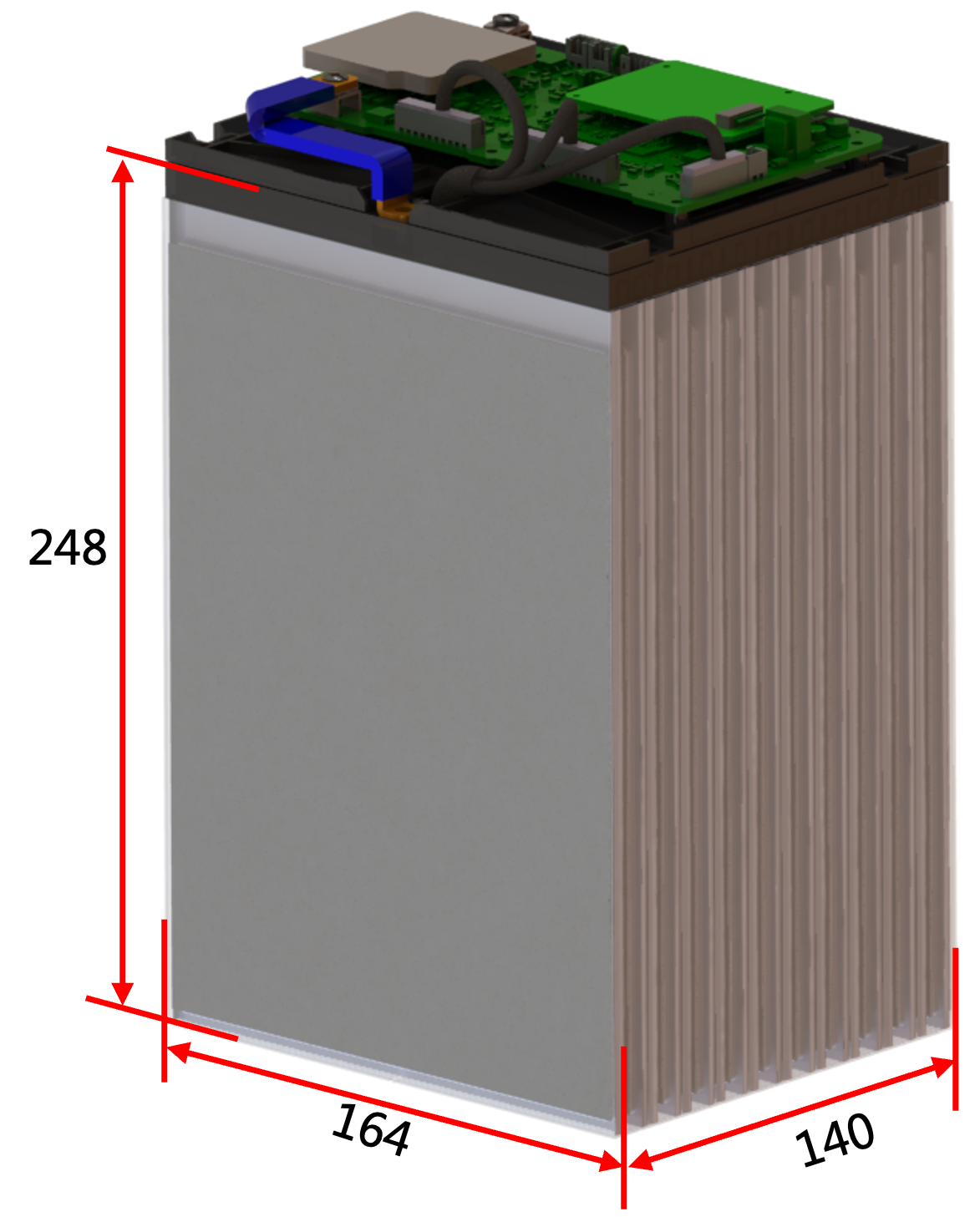

| Dimensions (L*W*H)（mm） | 93×164×248（BMS Not Included） | 120×164×248（BMS Not Included） | 190×164×248（BMS Not Included） | 140×168×248（BMS Not Included） | 335×248×106（BMS Not Included） | 224×164×248（BMS Not Included） | 224×164×248（BMS Not Included） |
Instructions
Shipment
The cell shall be shipped in voltage range of 3.5~ 3.8V or in accordance with customers' requirement. The remaining capacity before charging shall be changed depending on the storage time and conditions
Package
100pcs cells in a small box, 2 small boxes in a big box
Storage
Warranty
The Warranty period of cell is made according to business contract. However, even though the problem occurs within this period, BAK won’t replace a new cell for free as long as the problem is not due to the failure of manufacturing process or is due to customers’ abuse or misuse.
To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions: (It should be indicated especially in manual or instruction for users.)
- 1.Do not use and leave the cell near a heat source such as fire or heater.
- 2.Do not use or leave the cell under the blazing sun (or in heated car by sunshine).
- 3.Do not use or leave the cell at very high temperature conditions (e.g., strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or catch fire or its performance will be degenerate and its service life will be decreased.
- 4.Do not short circuit, over-charge or over-discharge the cell.
- 5.Don’t immerse the cell in water and seawater. Please put it in cool and dry environment if no using.
- 6.Don’t reverse the positive and negative terminals
- 7.Do not disassemble or modify the cell.
- 8.Do not transport or store the cell together with metal objects such as necklaces, hairpins, coins, etc.
- 9.Make sure the cell is not with conspicuous damage or deformation.
- 10.Don’t connect the cell to an electrical outlet directly.
- 11.If the cell leaks and the electrolyte splashes into the eyes, rinse the eyes with clean running water immediately for at least 15 minutes, and go to hospital for treatment if necessary.
- 12.Mixed use of cells of different types is not allowed.
- 13.Keep the cell away from babies.
- 14.Do not directly solder the cell and pierce the cell with a nail or other sharp object
- 15.Do not strike, throw or trample the cell.
- 16.Use the cell charger specifically for that purpose when charging.
- 17.Please separate cells of different electrochemical systems from one another when disposing of secondary cells.
- 18.Clean the terminals with a dry cloth before use if the cell terminals are dirty. Otherwise power failure or charge failure may occur due to the poor connection with the instrument.
- 19.Cells should be removed from the device or charger immediately and not used again if they are over heat, give off odor, discolor or deform, or appear abnormally in any way during use, charging and storage.
- 20.The cell replacement shall be done only by either cell supplier or device supplier instead of the user.
- 21.Please tape the terminals to insulate cells before discarding them in case of fire and explosion.
- 22.Do not use cells in strong electrostatic and magnetic occasions, otherwise, it can cause safety problems easily.
- 23.Use of damaged cells is not permitted.
- 24.Make sure package designing will not cause cell damages.
- 25.Cell packing should be conducted strictly according to level range, any misuse of different levels should not be permitted.
- 26.Disassembling cells from pack or module is not permitted unless under the guidance of professional technicians.
Customization
Let’s Start Design Your Battery!
WE ARE READY FOR YOUR NEXT PROJECT
Please try to answer our following questions,
- 1 What kind of product will the battery used for? please send us product pictures and specifications.
- 2 What’s the device voltage and current and if possible peak current
- 3 How long would you like the device to be used before next charging
- 4 Any special shape requirement? Triangle? Ultra thin? Ultra small? Arc shape? Curved?
- 5 What’s your application work condition? Temperature range, and humidity, outdoor or indoor, moving or stay still?
- 6 What’s the quantity you need?
